40m GEN 3 Fast Crew Boat
Introducing the 40M GEN 3 Fast Crew Boat – The Next Generation of High-Performance Crew Transfer
The 40M GEN 3 Fast Crew Boat redefines efficiency and capability in offshore crew transportation. With an impressive 40.4-meter length and marine-grade aluminium construction, this vessel is engineered for speed, durability, and versatility. Offering three propulsion options (Cummins, Yanmar, or Caterpillar), it delivers top speeds of up to 31 knots, ensuring rapid and reliable crew transfers even in demanding conditions.
Technical Specifications
Length Overall (LOA)
Moulded Beam
Fuel capacity
Fresh Water
Black/Grey Water
Key Specifications of 40m GEN 3 Fast Crew Boat

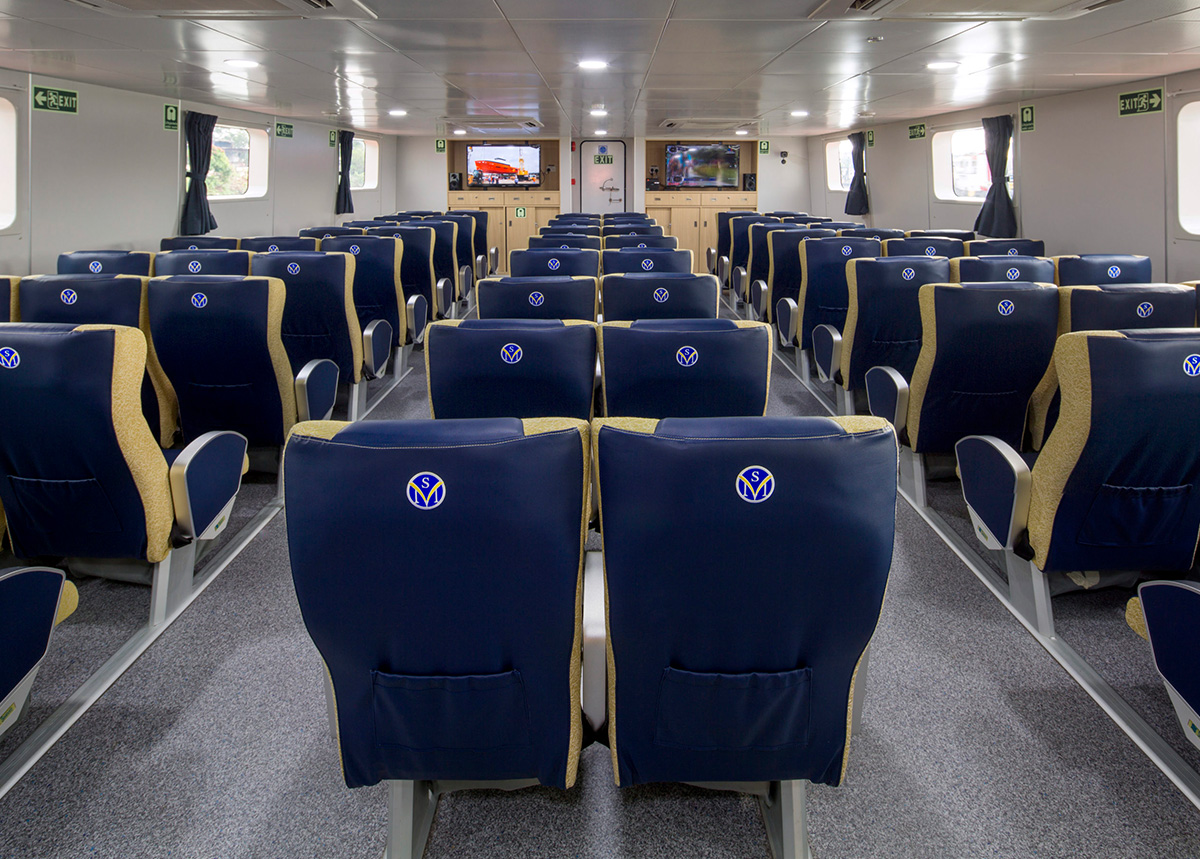

- High Capacity: Accommodates 100 passengers and 12 crew, with 5 twin-berth cabins and dedicated medical/office space.
- Advanced Deck Capability: 120m² clear deck area with 2.0 t/m² strength, ideal for cargo and logistics support.
- Cutting-Edge Options: Choose from FIFI systems, ballistic protection, dynamic positioning (DP1), semi-autonomous operation, and IMO Tier III compliance for reduced emissions.
- Regulatory Excellence: Classed by Lloyd’s Register/ACS and designed by Southerly Designs, with a 24-month structural warranty.
Whether for offshore wind farms, oil & gas, or high-speed patrol, the 40M GEN 3 combines innovative technology with proven performance to meet the toughest maritime challenges.
| Design Draft | 1.70m |
| Max Deadweight (DWT) | 105t |
| Cargo Deck Area | – |
| Main Engines | Option 1 – 3 x CumminsKTA50-M2 Option 2 – 3 x CATERPILLARC32 Option 3 – 3 x YANMAR 12AYM-WET |
| Speed @ 85% | Option 1 – 29.5 Knots (30DWT) Option 2 – 28.0 Knots (30DWT) Option 3 – 28.0 Knots (30DWT) |
| Speed @ 100% | Option 1 – 31.0 Knots (30DWT) Option 2 – 29.0 Knots (30DWT) Option 3 – 29.5 Knots (30DWT) |
| Main Propulsion | 3 x Fixed Pitch Propellers |
Gallery
Specifications
Dimensions and Construction
| Length Overall | 40.4m |
| Length Waterline | 39.0m |
| Scantling Draft | 1.70m |
| Propeller Draft | 1.90m |
| Deck Strength | 2.0 t/m2 |
| Construction | Marine Grade Aluminium |
| Structural Warranty | 24 Months (2 Years) |
Regulatory & Classification
| Class | Lloyds Register/IACS |
| Flag | Malaysia/Owners Choice |
| GRT | 288 (Approx.) |
| Designer | Southerly Designs |
Capacities
| Fuel | 70,000 L |
| Fresh Water | 30,000 L |
| Black Water | 500 L |
| Crew | 12 |
| Passengers | Up to 100 |
| Cabins | 5 x Two Berths 2 x Single Berths 1 x medical/office |
| Max Deadweight | 105 Tonnes |
| Clear Deck Area | 120.0m2 |
| Auxiliary | 2 x Cummins 6BT or Similar |
Featured options
| ½ Fifi | 600/1200 m3/hr |
| Deluge System | Aft Deck/Superstructure |
| Ballistic Protection | Bridge Sides |
| Bow Thruster | 1 or 2 Hydraulic with 1 Tonne of Thrust (Approx.) |
| Deck Crane | Palfingeror Similar |
| Ride Control | Naiad Active Interceptor or Similar |
| Biosafe Notation | Infectious Disease Control |
| Green passport | Safe Ship Recycling |
| IMO Tier III | SCR System |
| Semi Autonomous | Sea Machine or Similar |
| DP1 | Dynamic Positioning |
Propulsion System
– Option 1
| Main Engines |
3 x Cummins KTA50-M2 |
| Propulsion | 3 x Fixed Pitch Propellers |
| Speed @85% | 29.5 Knots (30DWT) |
| Speed @100% | 31.0 Knots (30DWT) |
Propulsion System
– Option 2
| Main Engines |
3 x CATERPILLAR C32 |
| Propulsion | 3 x Fixed Pitch Propellers |
| Speed @85% | 28.0 Knots (30DWT) |
| Speed @100% | 29.0 Knots (30DWT) |
Propulsion System
– Option 3
| Main Engines |
3 x YANMAR 12AYM-WET |
| Propulsion | 3 x Fixed Pitch Propellers |
| Speed @85% | 28.0 Knots (30DWT) |
| Speed @100% | 29.5 Knots (30DWT) |
Why 40m GEN 3 Fast Crew Boat
- Blazing Speed – Up to 31 knots with 3 x Cummins/CAT/Yanmar engine options for rapid crew transfers.
- Massive Capacity – Carries 100 passengers + 12 crew with 5 cabins and medical facilities.
- Huge Cargo Deck – 120m² clear deck (2.0 t/m² strength) for heavy equipment/logistics.
- Advanced Tech – Optional DP1, semi-autonomous systems, FIFI firefighting, and ballistic protection.
- Eco-Friendly – IMO Tier III compliant (low emissions) + Green passport for recycling.
- Built Tough – Marine-grade aluminium hull with 24-month warranty.
- Global Compliance – Lloyd’s Register/ACS classed, adaptable to any flag.
Perfect for
- Offshore wind farms
- Oil/gas support
- High-speed patrol
- Emergency response
